Monome Norns upgrade kit, based on Norns shield 210330 version.
https://github.com/monome/norns-shield
Since Norns cannot be used as a standalone machine and there are problems with the connection to a professional mixer, this kit is designed and sold.

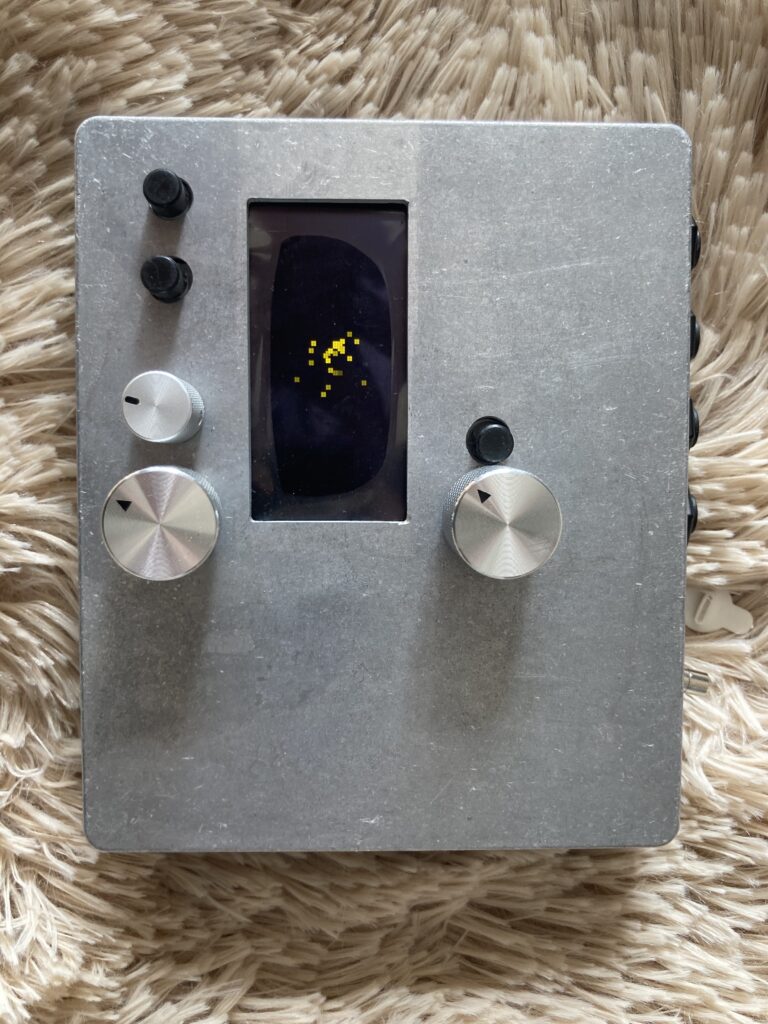

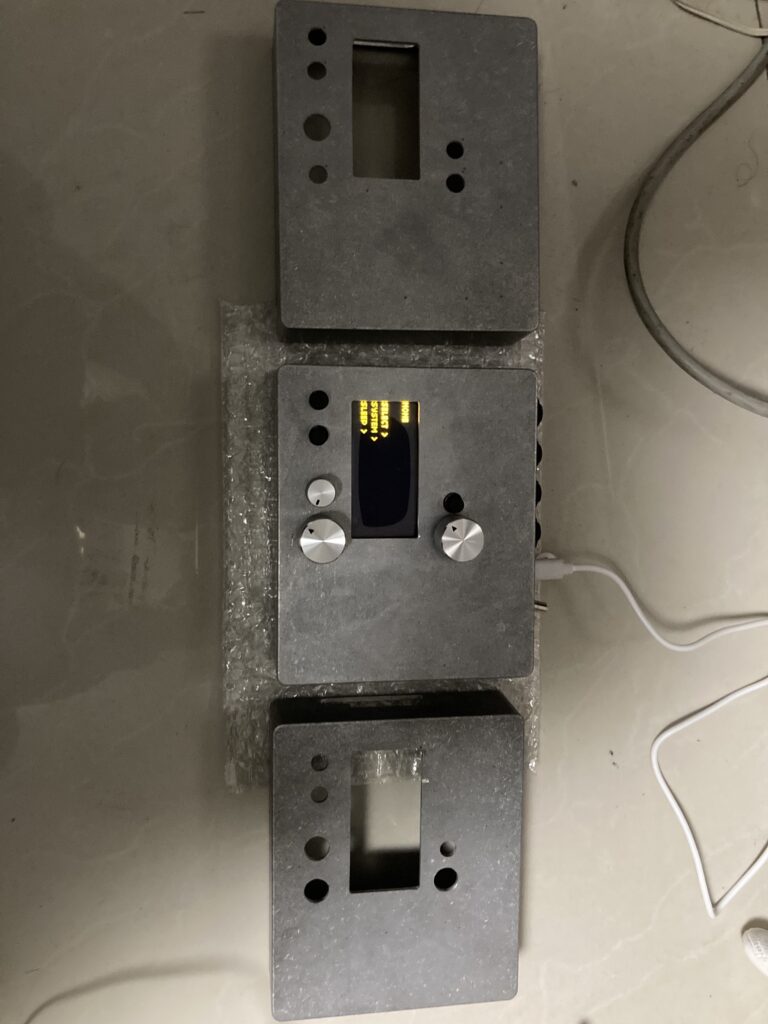

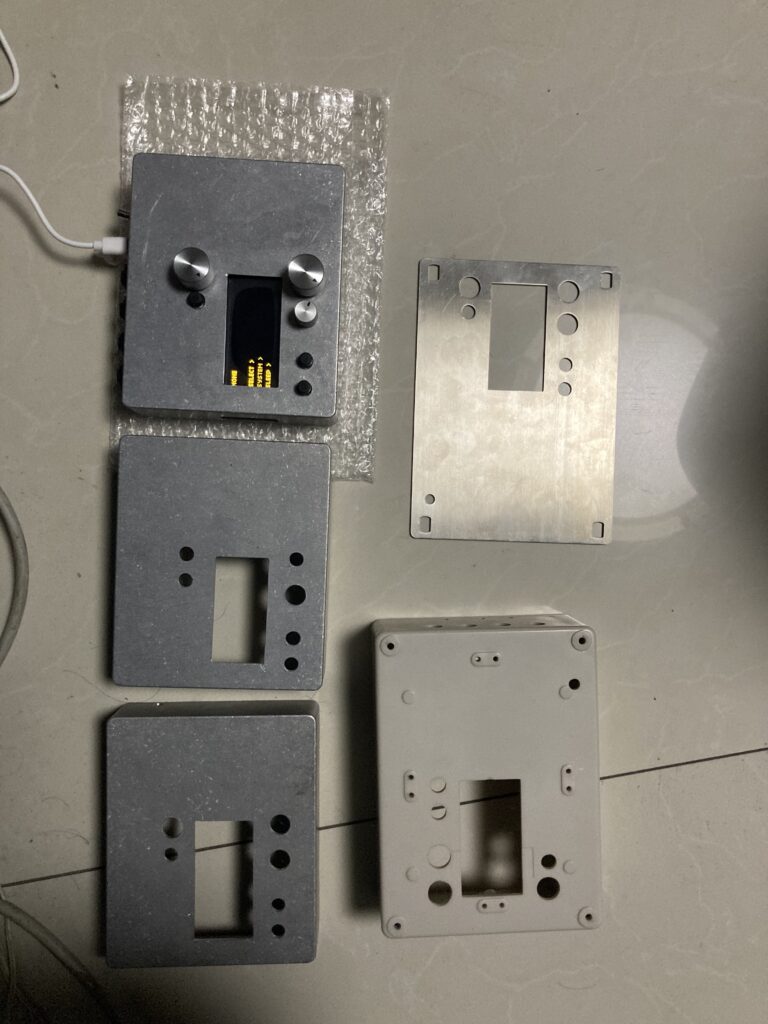

Appearance: cast aluminum integrated shell 1590XX shell, hand-drilled round holes, milled square holes.

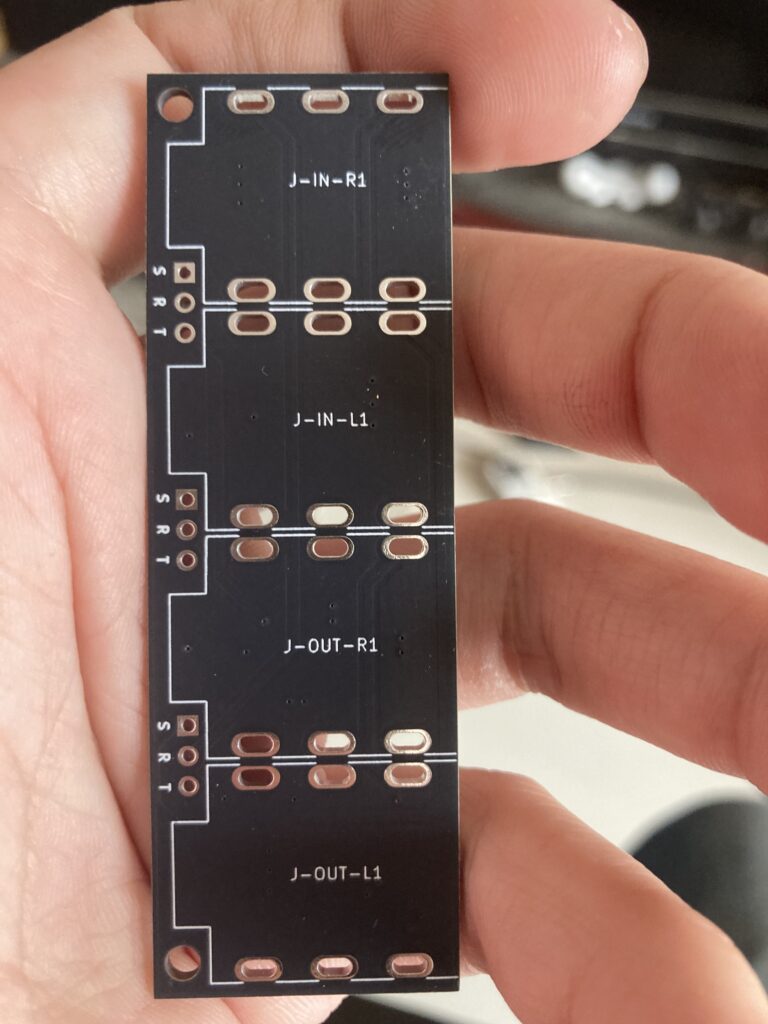

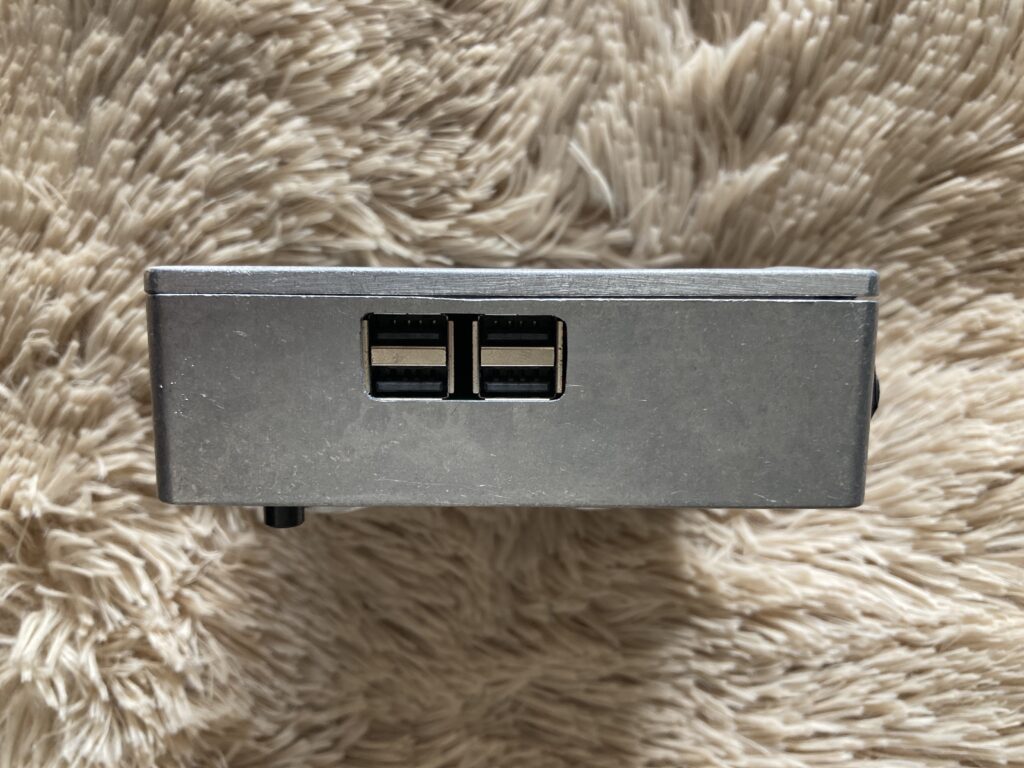

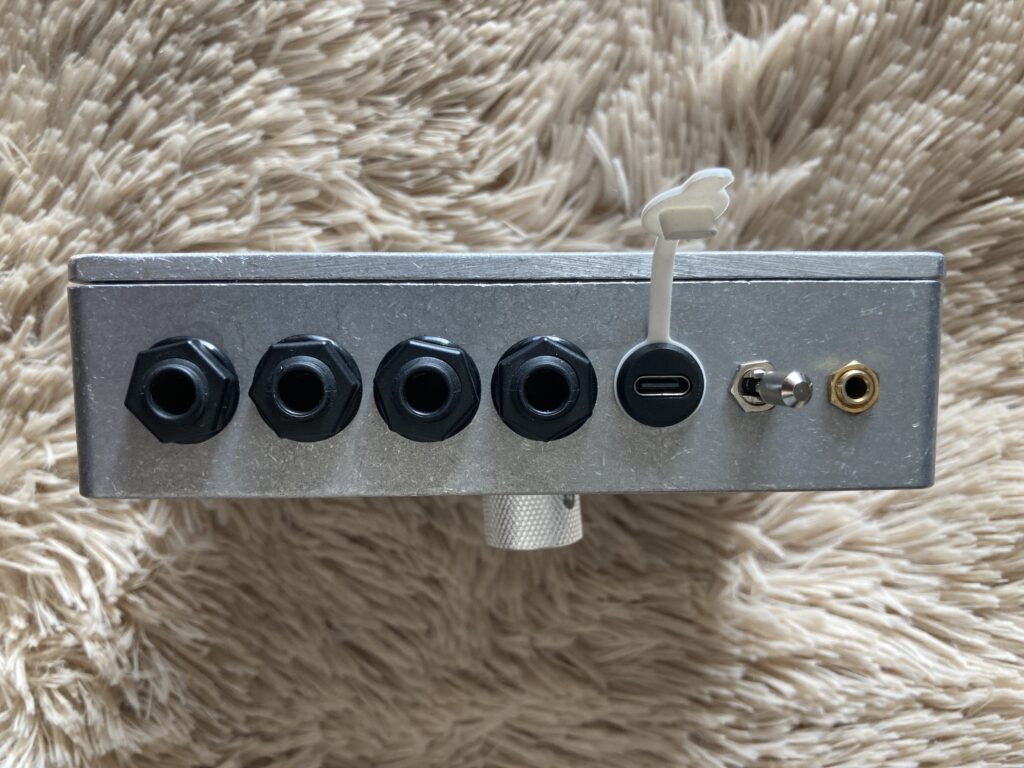

Input and output: self-designed branch PCB. Input split left and right 6.35 unbalanced (compatible with balanced line), output left and right 6.35 unbalanced (compatible with balanced line) and headphone 3.5 interface, output can be automatically switched after inserting 6.35. 4 USB interfaces, shielded network cable port with low interest rate. All audio interfaces use gold-plated interfaces, brands such as Nutrek.

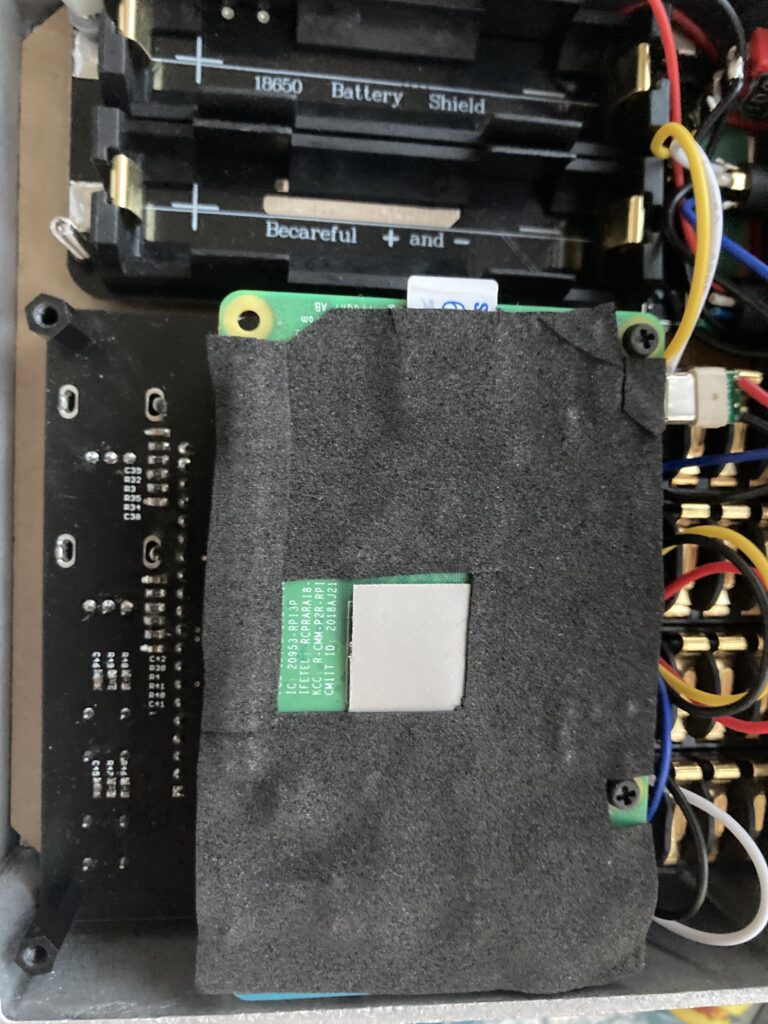

Power supply: The finished product has a built-in 18650 battery 2A charging module, and the fly line switch is re-set. The battery life is about 3 hours, and the default is Panasonic original battery (original price 20+/unit). The power port is changed to waterproof type-C.

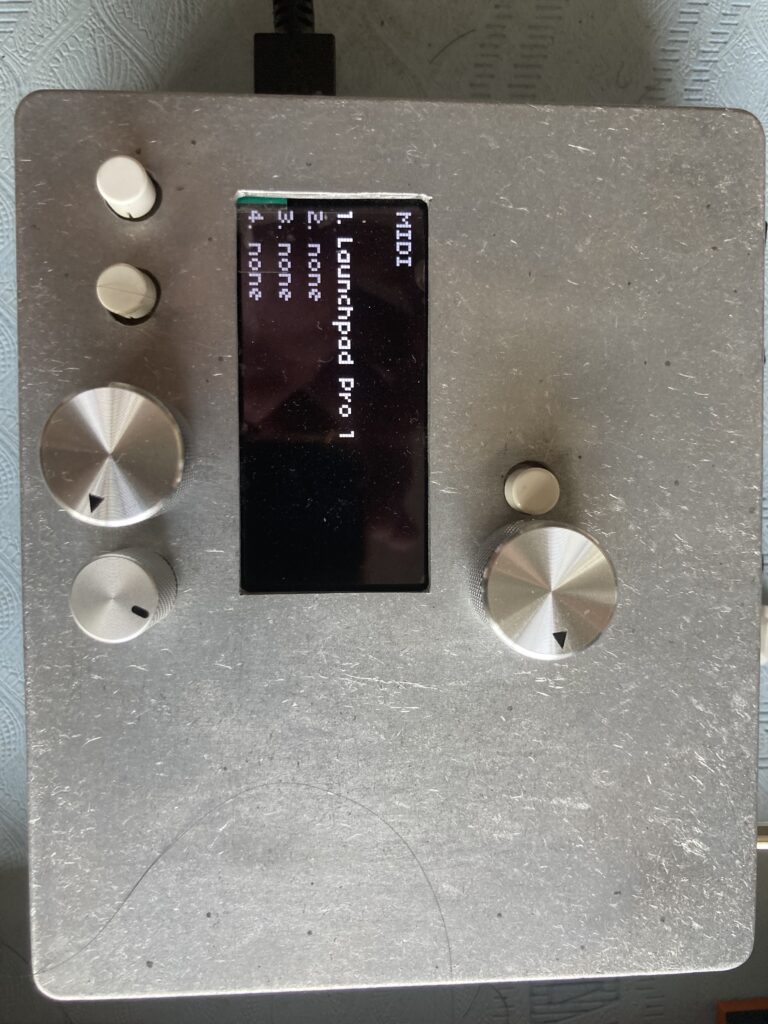

Switch knob: anti-mistouch switch. All-aluminum knob cap.
The upgrade process is: send me the norns that have been tested and installed, and I will send it back after installation (SF Express). Due to the welding involved, no brainless installation kit can be provided for the time being.
